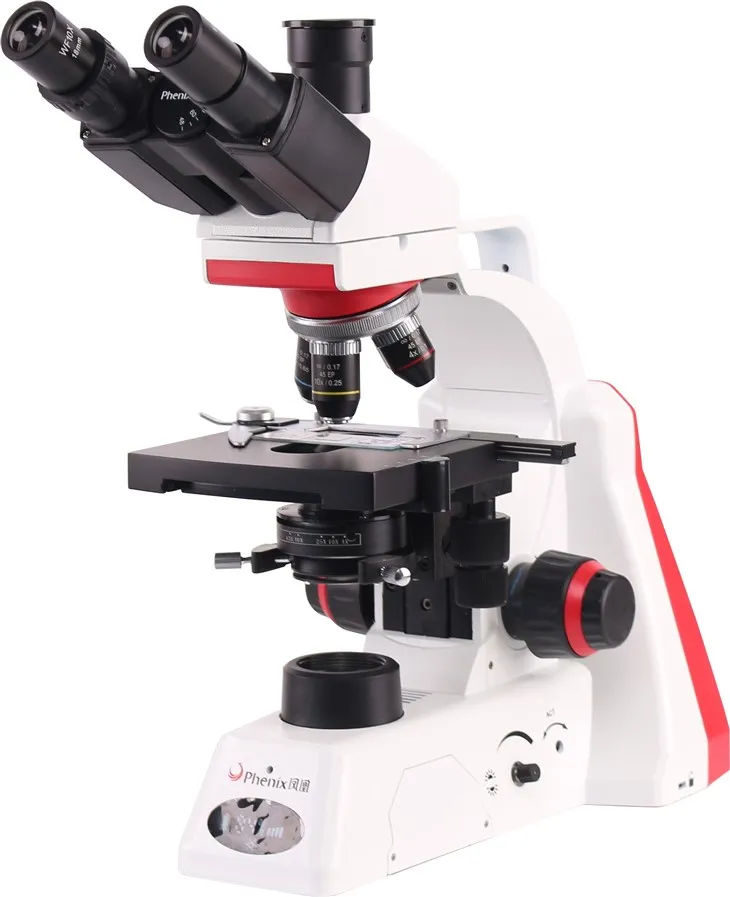

BMC100 Series biological trinocular microscope
Product Name: Biological trinocular Microscope
The Biological Trinocular Microscope is a versatile laboratory instrument designed for demanding educational and research applications, now featuring a smart display window for real-time monitoring of battery level and charging status. It offers exceptional flexibility for future expansion, with an optical system that can be upgraded to an infinity-corrected plan field configuration. Users can also choose between a built-in digital camera or a fully integrated all-in-one unit with a built-in LCD screen, creating a seamless digital workflow for observation and documentation.
This microscope is equipped with a flexible gooseneck LED side light source and a USB-powered LED for versatile illumination from multiple angles, complemented by an adjustable color temperature function to enhance specimen contrast and detail. The trinocular head facilitates simultaneous visual observation and effortless connection to imaging devices. Whether configured for standard use or upgraded for advanced digital integration, this Biological Trinocular Microscope https://www.phenixoptical.com/microscope/biological-microscope/is engineered to adapt to your evolving imaging needs with ease and precision.
Built to rigorous quality standards, the microscope ensures reliable performance and is backed by comprehensive support. It represents an ideal, forward-compatible solution for any laboratory seeking to combine traditional microscopy with modern digital capabilities.
Product Features
Key Features:
- Upgradable to Infinity Plan System & Built-in Digital/LCD Options
- Smart Display for Battery & Charging Status
- Flexible Gooseneck & USB LED Lighting with Color Temperature Control
- Trinocular Head for Camera Attachment
- Ideal for Advanced Education and Research Applications
Specification
|
Model Number |
BMC100-A2 |
BMC100-A3 |
|
Total magnification |
40X-1000X |
|
|
Viewing Head |
Binocular, 30° inclined, 360° rotatable |
Trinocular, 30° inclined, 360° rotatable |
|
Eyepiece |
WF10X/18mm |
|
|
Objective |
195 achromatic objective 4X, 10X, 40X(S), 100X(S,O) |
|
|
Nosepiece |
Quadruple |
|
|
Focusing System |
Coarse and fine movement coaxial, adjustable elasticity, |
|
|
Stage |
Curved double-layer mechanical platform, 140x140mm, stroke 76x52mm |
|
|
Condenser |
Abbe condenser N.A.=1.25, iris diaphragm, center adjustable, handwheel lifting |
|
|
Collecting mirror |
Critical illumination (Kohler illumination), adjustable field diaphragm |
|
|
Bottom Light |
3W color temperature adjustable LED, compound eye lighting,brightness adjustable, color temperature adjustable, right-side insertion and removal |
|
|
Intelligent sensing device |
30 minutes delay induction shutdown |
|
|
Photoelectric Smart Display |
LED intelligent display of the working status of the up and down lights and battery power |
|
|
Power supply |
External regulated power adapter DC 5V/2A, Rechargeable battery 3.7V-1600mAh |
|
|
Packing |
Foam+ Carton |
|
Product Details:
Our hot-selling projects
● Binocular and trinocular observation tube
Adjustable tube, 30° inclined, 360° rotatable
● Achromatic objective lens
4X, 10X, 40X (spring), 100X (spring, oil)
● Coaxial coarse and fine movement
Coarse movement stroke: 28mm, fine movement accuracy: 0.002mm
● Lighting system
Upper light source: USB flexible light, 360° lighting without any blind spot
Bottom light source: adjustable color temperature , 3W LED light
● Side-mounted drawer type light box
● Intelligent LCD digital display window
The ECO smart sensor function can automatically turn off the power after the user leaves for 30 minutes
ACT color temperature switching function, can adjust the light source brightness according to user needs
