PH-M2030B industrial metallurgical microscope
Product Description：
The PH-M2030B Industrial Metallurgical Microscope is a robust and versatile instrument engineered for the detailed examination of opaque materials in industrial and research settings. It features a sophisticated epi-illumination system, essential for analyzing metal samples, alloys, and other non-transparent specimens without the need for complex preparation.
This microscope is built for performance and adaptability. It offers a large 185x140mm mechanical stage for handling sizable samples and a choice between quadruple or quintuple nosepieces to accommodate various long-working distance plan achromatic objectives. The coaxial coarse and fine focusing knobs, with a precise 2μm fine adjustment range, ensure sharp imaging. Equipped with a powerful 6V/20W halogen lamp (brightness adjustable) and a trinocular head, this Metallurgical Microscope seamlessly transitions between standard observation and microphotography, providing 100% light transmission for accurate image capture.
Backed by six decades of manufacturing expertise, this instrument is produced under ISO 9001, 14001, and 45001 certified systems and is CE marked. We provide a one-year warranty, comprehensive after-sales support including installation training, and flexible OEM/ODM services. Designed for durability and ergonomic operation, the PH-M2030B Industrial Metallurgical Microscope BMC600 delivers reliable, high-performance analysis for quality control, failure analysis, and advanced material research.
Product Features
▲Configure large-field eyepieces and long distance plan achromatic objectives (no cover glass ), large and clear view field .
▲ Coaxial coarse and fine focusing knob, coarse elastic adjustable, with locking and limit device, fine focusing range: 2μm.
▲Equipped with two sets of illumination systems, it can be used for microscopic observation of opaque or transparent objects.
▲6V20W halogen lamp,brightness adjustable .
▲Trinocular tube, which can switch between normal observation and polarized light observation, and can perform 100% light transmission photography.
▲High-Intensity Epi-Illumination for Opaque Samples
▲Large 185x140mm Stage & Optional Nosepieces (4 or 5 Holes)
▲Coaxial Coarse/Fine Focus (2μm Precision)
▲Trinocular Head for 100% Light Transmission Photography
Specification
|
Model |
PH-M2030A |
PH-M2030B |
|
Viewing tube |
Trinocular, Inclination of 30° (Analyzer with field diaphragm to switch) |
|
|
Eyepiece |
Wide field WF10X(Φ18mm) |
|
|
Objective |
Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12 |
Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12 |
|
Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25 |
Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25 |
|
|
Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60 |
Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.40 |
|
|
Plan achromatic objectives with long working distance (no cover glass) PL L60X/0.75 (Spring) |
Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60 |
|
|
Plan achromatic objectives with long working distance (no cover glass) PL L60X/0.75 (Spring) |
||
|
Nosepiece |
Quadruple (Backward ball bearing inner locating) |
Quintuple (Backward ball bearing inner locating) |
|
Vertical illumination unit |
6V 20w, halogen lamp, brightness control |
|
|
Vertical illumination with field diaphragm, aperture diaphragm and polarizer, (Y, B, G)filter and frosted filter |
||
|
Focus system |
Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm |
|
|
Stage |
Double layer mechanical (Size:185mmX140mm, movingrange:75mmX50mm) |
|
|
Vertical illumination unit |
Abbe condenser NA.1.25 Rack & pinion adjustable |
|
|
Blue filter and frosted filter |
||
|
Collector for halogen lamp |
||
|
6V 20w halogen lamp, brightness control |
||
|
Optional accessories |
||
|
Name |
Sort/Technique parameter |
|
|
Eyepiece |
Wide field WF16X(Φ11mm) |
|
|
Dividing 10X(Φ18mm) 0.1mm/Div |
||
|
Objective |
Plan achromatic objectives with long working distance (no cover glass) PL L 50X/0.70 |
|
|
Plan achromatic objectives with long working distance (no cover glass) PL L 80X/0.80 |
||
|
Plan achromatic objectives with long working distance (no cover glass) PL L 100X/0.85 (Spring) |
||
|
Plan achromatic objectives with long working distance (no cover glass) PL 100X/1.25 (Spring, oil) |
||
|
Filter |
Green filter |
|
|
Yellow filter |
||
Product Details
PH-M2030B Industrial Metallurgical Microscope key technologies
Front picture
The design is ergonomic and the operation is convenient and flexible.
Back picture.
CE remark. easy operation.
Application
Other details
High
H
An
● Observation system
Compensation observation tube: trinocular, single diopter adjustable, 30° inclined, can be connected to the camera.

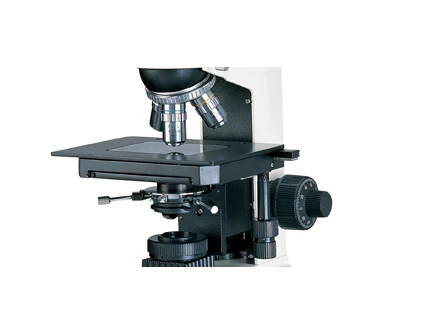

● Mechanical stage
Double-layer mechanical stage, size: 185mmX140mm; moving range: 75mmX50mm, moderate design concept, it is more convenient and comfortable for users to operate the stage.
● Epi-illumination system
6V 20W halogen lamp, brightness adjustable. Built-in field diaphragm, aperture diaphragm, (yellow, blue, green, frosted glass) color filter switching device. Puller polarizer can be circumrotated for 90°.
● Transmitted-illumination system
Built-in halogen lamp illumination device: 6V 20W halogen lamp, brightness adjustable. Abbe condenser N.A.1.25 Rack& Pinion adjustable. Equipped with B filter and frosted glass.
